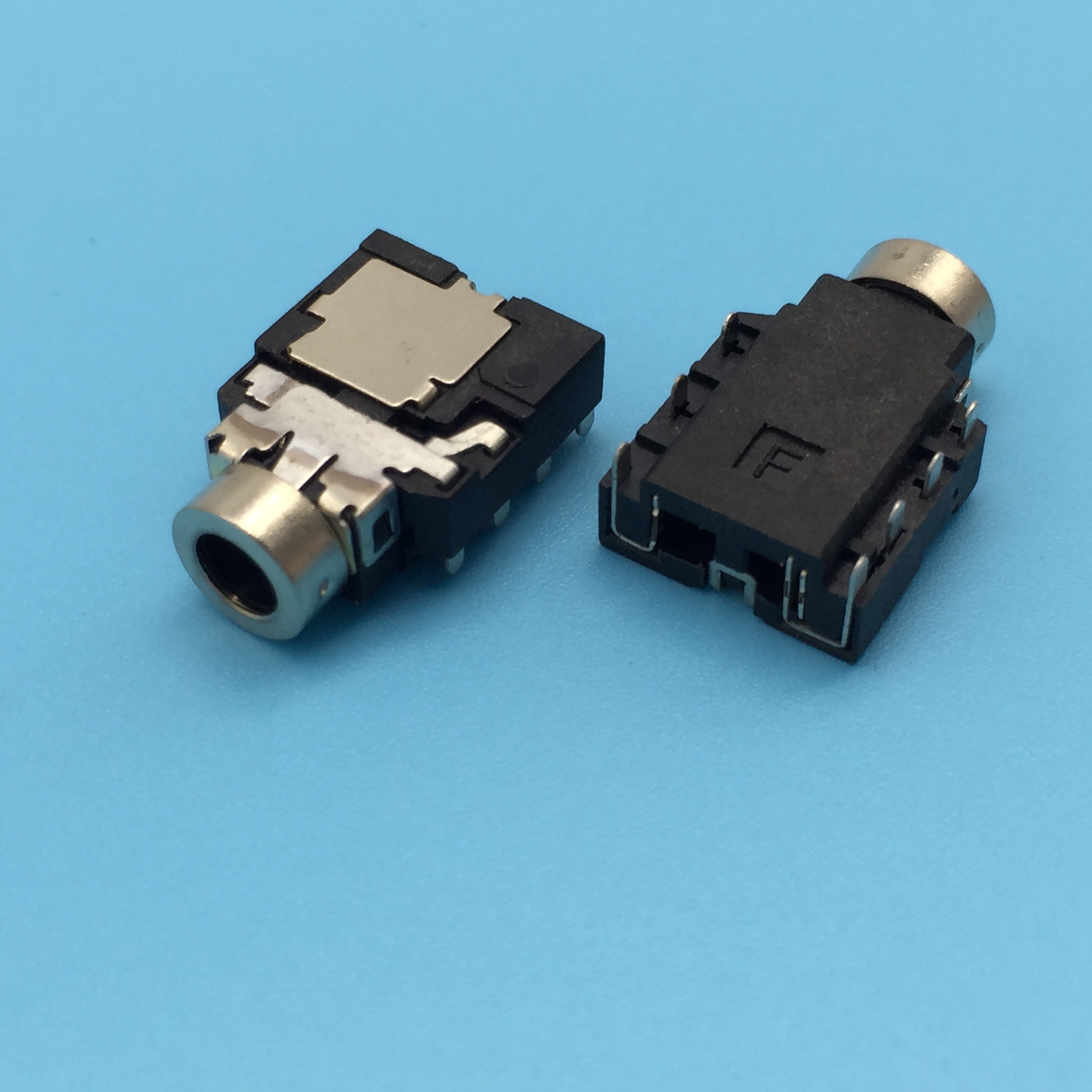

3.5MM耳机插座PJ142

NOTES:

1.ELECTRICAL CHARACTERISTICS ；

1-1.CONTACT RESISTANCE:

50m ΩMAX(INITIAL)

100m ΩMAX(FINAL)

1-2.DIELECTRIC WITHSTANDINGVOLTAGE:

500V AC FOR ONE MINUTE.

1-3.INSULATION RESISTANCE:

100M Ω MIN. MEASUTED BY 500V DC

2.MECHANICAL CHARACTERISTICS:

2-1.PLUG INSERTION FORCE:0.5~3.0kgf.

2-3.PLUG WITHDRAWAL FORCE:0.5~3.0kgf.

3.DURABILITY TEST:5,000 CYCLES.

4.FOR REFLOW SOLDERING

LEAD-FREE PROCESS.

5.SOLDERING HEAT RESISTANCE

REFLOW SOLDERING 260C.

6.PLUG INTERFACE DIMENSIONS

CONFORM TO EIAJ RC-5325 SPEC.

7.PACKAGING:TAPE&REEL.

8.PRODUCT SHOULD MEETROHS3.2

(LEAD FREE)/HALOGEN FREE

REQUIREMENT
